Opel

-

small-vehicle-dimensions5
Opel Combo | Construction year 2012 - present
Length / Height L1/H1 L1/H2 L2/H1
Wheelbase 2755 mm 2755 mm 3105 mm
Load space length 1820 mm 1820 mm 2170 mm
Load space width 1714 mm 1714 mm 1714 mm
Load space height 1305 mm 1550 mm 1305 mm
Rear overhang length 740 mm 740 mm 740 mm

-

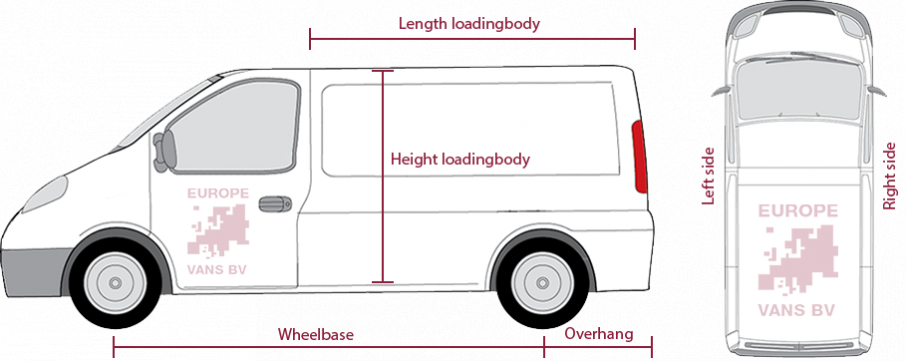

medium-vehicle-dimensions6

Opel Vivaro | Construction year 2001 - 2014

Length L1/H1 L1/H2 L2/H1 L2/H2
Wheelbase 3098 mm 3098 mm 3498 mm 3498 mm
Load space length 2400 mm 2400 mm 2800 mm 2800 mm
Load space width 1690 mm 1690 mm 1690 mm 1690 mm
Load space height 1387 mm 1913 mm 1387 mm 1913 mm
Rear overhang length 851 mm 851 mm 851 mm 851 mm

Opel Vivaro | Construction year 2014 - present

Length L1/H1 L1/H2 L2/H1 L2/H2
Wheelbase 3098 mm 3098 mm 3498 mm 3498 mm
Load space length 2537 mm 2537 mm 2937 mm 2937 mm
Load space width 1662 mm 1662 mm 1662 mm 1662 mm
Load space height 1387 mm 1898 mm 1387 mm 1898 mm
Rear overhang length 968 mm 968 mm 968 mm 968 mm

-

large-vehicle-dimensions7

Opel Movano | Construction year 2010 | FWD

Length / Height L1/H1 L1/H2 L2/H2 L2/H3 L3/H2 L3/H3
Wheelbase 3182 mm 3182 mm 3682 mm 3682 mm 4332 mm 4332 mm
Load space length 2583 mm 2583 mm 3083 mm 3083 mm 3733 mm 3733 mm
Load space width 1765 mm 1765 mm 1765 mm 1765 mm 1765 mm 1765 mm
Load space height 1700 mm 1894 mm 1894 mm 2144 mm 1894 mm 2144 mm
Rear overhang length 1024 mm 1024 mm 1024 mm 1024 mm 1024 mm 1024 mm

Opel Movano | Construction year 2010 | RWD| Double air tires

Length / Height L3/H2 L3/H2 (DL)  L3/H3 L3/H3 (DL)  L4/H2 (DL)  L4/H3 (DL)
Wheelbase 3682 mm 3682 mm 3682 mm 3682 mm 4332 mm 4332 mm
Load space length 3733 mm 3733 mm 3733 mm 3733 mm 4383 mm 4383 mm
Load space width 1765 mm 1765 mm 1765 mm 1765 mm 1765 mm 1765 mm
Load space height 1798 mm 1798 mm 2048 mm 2048 mm 1798 mm 2048 mm
Rear overhang length 1674 mm 1674 mm 1674 mm 1674 mm 1674 mm 1674 mm
